HST 300 HYDRAULIC TURRET PUNCH
Can't See the Movie Above? Download as MP4
4 AXIS HIGH SPEED
SPECIFICATIONS
Specification |
Rating |
HST 300 |
Tonnage |
US Tons |
33 |
Max. sheet size
1 reposition |
Inches |
49” x 100”
2.5M |
49” x 157”
4M |
49” x 197”
5M |
49” x 236”
6M |
X Travel |
|
|
78.5 |
98.5 |
118” |
Max sheet thickness |
Inches |
¼” |
¼” |
¼” |
¼” |
Sheet clamping-hyd |
Qty |
3 |
3 |
3 |
3 |
Max. sheet Wt |
Lbs |
330 |
400 |
460 |
520 |
Max punch dia. |
Inches |
3.5 |
3.5 |
3.5 |
3.5 |
Punch stroke |
Inches |
1.18 |
1.18 |
1.18 |
1.18 |
Tool stations |
Qty |
24/32 |
24/32 |
24/32 |
24/32 |
Auto Index Stn |
Qty |
2 |
2 |
2 |
2 |
Position accuracy |
Inches |
0.004 |
0.004 |
0.004 |
0.004” |
Max. hit speed |
hpm |
1100 |
1100 |
1100 |
1100 |
1” step speed |
hpm |
350 |
350 |
350 |
350 |
Max. traverse sp. |
ipm |
3550 |
3550 |
3550 |
3550 |
Turret rotation |
rpm |
30 |
30 |
30 |
30 |
Machine axes |
Qty |
4+1 |
4+1 |
4+1 |
4+1 |
Throat size |
Inches |
50.4 |
50.4 |
50.4 |
50.4 |
Compressed air |
psi |
100 |
100 |
100 |
100 |
Ship dimensions |
Inches |
208/108/100 |
208/160/108 |
208/200/108 |
208/240/108 |
Weight |
Lbs |
39,000 |
42,000 |
46,000 |
50,000 |
|
|
|
|
|
|

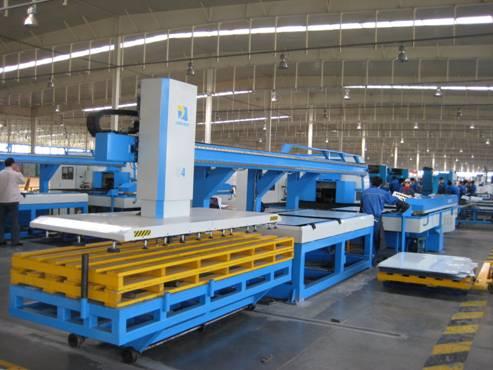

AUTO LOAD/ UNLOAD SYSTEM ( OPTIONAL)
TOOL STATIONS CHART
POSITION |
A |
B |
C |
D |
IT |
QUANTITY |
18 |
8 |
2 |
2 |
2 |
TOOL DIA. |
1/8”-1/2” |
1.25 Max |
2” Max |
3.5” Max |
2” max |
INTELLIGENT CLAMPING AXIS OPTIONAL EXTRA
COMPONENT FEATURES
Fanuc Oi-PC controls with Fanuc digital AC drives and Fanuc motors.
10.4” Graphics display
Siemens relay logic.
Free standing electronic panel.
Ball screws on X and Y travel.
Thick Turret tool cavities..
Rigid closed frame.
Combination Brush and Ball table..
CAD software to enable files to be transferred in dxf and compatible with other machines..
Full set of tooling included.
Tooling interchangeable with major brands..
WARRANTY: 5 YEARS - Refer to our warranty certificate for full details.
DESIGN FEATURES
|
The factory produces 400 machines per year in a state of the art facility using advanced CNC machining capabilities.
Quality is equal to the world’s best and only name brand components are used. This guarantees world wide support and replacement part availability. |
|
FANUC Oi-PC CNC control matched with FANUC servo drives and FANUC motors.
Optional Auto Program software enables jobs to be prepared and stored on desk top computers. |
|
Hydraulic Clamping also floats to allow vertical movement.
The clamps present only a small dead zone and can travel between the discs of the turret.
Programmable Intelligent clamping to prevent crashes. |
|
Combination Brush and Ball surface reduces noise during punching.
Prevent scratches on polished sheets. |
|
Tool cavities accommodate
all the leading thick Turret name brand tools. |
|
Rigid closed frame design.
Welded, stress relieved and machined as a finished unit.
Controls are located away from the machine to eliminate problems caused by vibration. |
|
High quality heavy duty linear motion components.
Linear guides and ball screws are by Bosch Rexroth.
Auto Lubrication is included. |
