Magnabend

Nominal Capacity

Machine Weight

Model 2000E

2000 mm x 1.6mm (6 ½’ x16g)

290 kg =650 lbs.

Model 2500E

2500 mm x 1.6mm (8’ x 16g)

330 kg = 750 lbs.

Model 3200E

3200 mm x 1.2 mm (10 1/2’ x 18g)

380 kg = 850 lbs.

Material

(Yield/ultimate)

Thickness

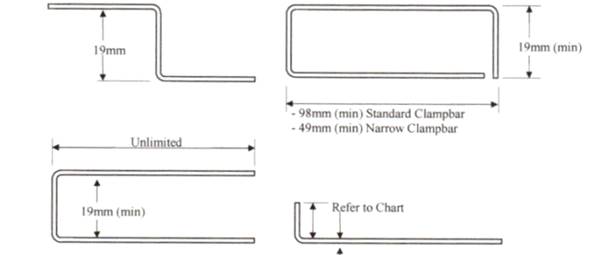

Flange

(Minimum)

Bend Radius

(Typical)

Mild-Steel

(250/320 MPa)

1.6 mm

30 mm*

3.5 mm

1.2 mm

15 mm

2.2 mm

1.0 mm

10 mm

1.5 mm

Aluminum

Grade 5005 H34

(140/160 MPa)

1.6 mm

30 mm*

1.8 mm

1.2 mm

15 mm

1.2 mm

1.0 mm

10 mm

1.0 mm

Stainless Steel

Grades 304, 316

(210/600 MPa)

1.0 mm

30 mm*

3.5 mm

0.9 mm

15 mm

3.0 mm

0.8 mm

10 mm

1.8 mm
