UHP WATERJET CUTTING SYSTEM

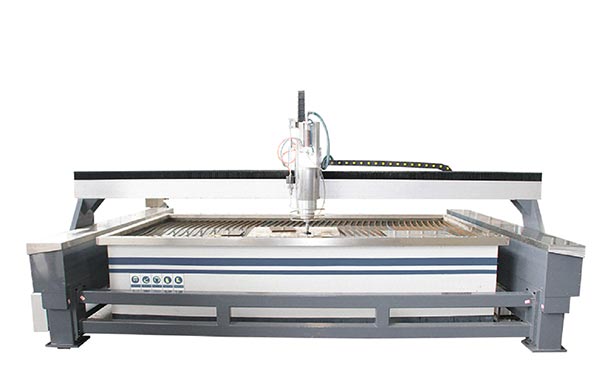

MODEL WJ1530





Control System

Siemens CNC, PLC and AC Servos
CAD/ CAM Software compatible with: ASC, IGS, DXF, STL, NFL, PRT and STEP
On board diagnostics
Hand held control for X, Y and Z.
X and Y axis ball screws and THK linear guides.

Control accuracy;    +/-0.002mm (0.00008”)
Cutting Accuracy:    +/- 0.1mm   (0.0039”)



Diamond Orifice

Integrated cutting head with diamond orifice
Absolute concentricity for orifice and nozzle



Linear Guides

ABB hardened and precision ground linear guide system on 3 Axes


Auto Abrasive Delivery

Capacity for 500 to 800 minutes of cutting
Low level warning light
1 pallet of abrasive is included










Waterjet Cutting Table

Mostly stainless steel construction
Dust proof components are applied
Load/unload from 3 sides







Accustream C50P UHP 50HP Intensifier

Made by KMT

Max Pressure:             60,000 psi
Max flow rate:              3.8 L/min
Nozzle:                         0.8 -1.0 mm
Orifice:                         0.26 -0.3 mm.
Motor:                          30Kw/40HP
Reduced amp starting circuit
Cutting speeds:          10mm steel = 180mm/ 7ipm
                                    12mm glass = 800mm/31ipm





Water Chiller





This chiller keeps the hydraulic pump cool.
It maintains constant oil temperature to improve pump life.







Cutting Head



The DSP7 is one of the world’s most effective integrated cutting head with diamond orifice. Absolute concentricity for orifice and nozzle.

Has auto height sensing control.









PRESSURE SWITCH





The DWCH switch for the high pressure water flow provides reliable start/ stop control of the pressure stream.









5 AXIS Cutting Head (Optional)















SPECIFICATIONS

MODEL #

WJ1520

WJ1525

WJ1530

WJ2030

WJ2040

CUTTING SIZE

1.5M x 2.0M

1.5 x 2.5M

1.5 x 3.0M

2.0X 3.0M

2.0 x 4.0 M

WARRANTY:  1 YEAR PARTS AND LABOR
SHIPPING DIMENSIONS:


MODEL

LENGTH

WIDTH

HEIGHT

WEIGHT

WJ1520

6’3”

4’ 8”

5’

4300

WJ1525

11’

7’6”

5’

6500

WJ1530

13’

9’ 6”

5’

7500

WJ2030

16’

9’6”

5’

9000
